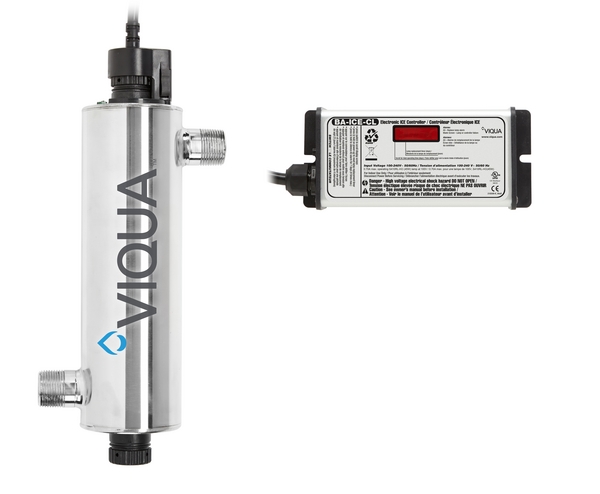

VIQUA VH200, Whole Home UV System
The VH200 inactivates the following microorganisms: Cryptosporidium, Giardia, E.Coli and Fecal Coliform. The VH200 system is a reliable and economical way to treat drinking water in any residential application, with flow rates up to 9 gpm (34 lpm).
Benefits
- Space Efficient High UV output lamp technology allows for a smaller footprint while providing the same UV performance as a longer chamber.
- Ease of Maintenance Audible lamp replacement reminder and countdown timer with digital display. A controller will also go into alarm if the lamp fails.
- Reliable The constant current feature ensures stable UV lamp output, regardless of power fluctuations. High-performance UV lamp, rigorously tested to provide a consistent output over the entire lamp life (9000 hours)
- Application Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications.
Specifications
| Connection Size |
3/4"- 1" MNPT COMBO (/2B - BSP) |
| Dimensions |
17 3/4" x 3 1/2" (45 cm x 8.9 cm) |
| Flow Rate |
16mJ/cm2: 16 GPM (60 lpm) (3.6 m3/hr)
30mJ/cm2: 9 GPM (34 lpm) (2.0 m3/hr)
40mJ/cm2: 7 GPM (26 lpm) (1.6 m3/hr) |
| Power Consumption |
35W |
| Ship Wt. (lbs) |
12 lbs (5.4 kg) |
| What's included? |
Note: The VH200 replaces the SC200 system. |
Documents

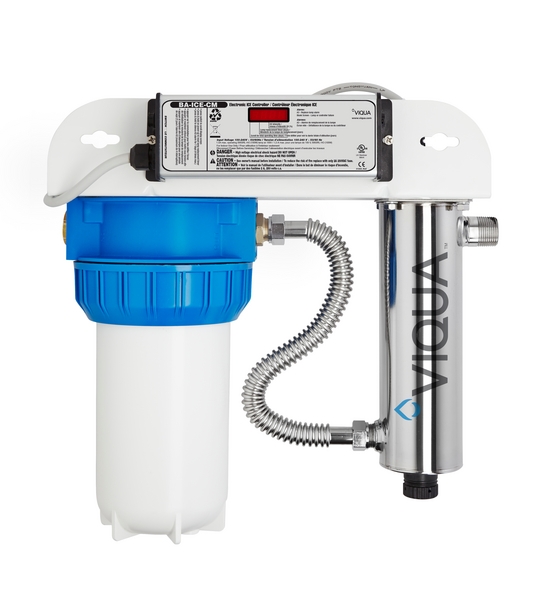

VIQUA VH200-F10, Whole Home Integrated Pre-Filtration UV
The VH200-F10 inactivates the following microorganisms: Cryptosporidium, Giardia, E.Coli and Fecal Coliform. Powerful, yet compact UV system with pre-filtration designed for the average size home or cottage, for flow rates up to 9 gpm (34 lpm).
Benefits
- Pre-Filter Solution Adds integral 5 micron pre-filtration module to the VH200 UV system. Click here to find out more about our high-performance sediment cartridges
- Convenient Mounted on a reversible, heavy duty, painted steel bracket for installation flexibility and convenience
- Ease of MaintenanceAudible lamp replacement reminder and countdown timer with digital display. Controller will also go into alarm if the lamp fails
- Reliable The constant current feature ensures stable UV lamp output, regardless of power fluctuations High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life (9000 hours)
- Space Efficient High UV output lamp technology allows for a smaller footprint, while maintaining the same UV dose as a longer chamber.
Specifications
| Connection Size |
1"MNPT INLET / 1" x 3/4" COMBO OUTLET (/2B - BSP) |
| Dimensions |
17" x 10 1/2" x 18" (43 cm x 26 cm x 45 cm) |
| Flow Rate |
16mJ/cm2: 16 GPM (60 lpm) (3.6 m3/hr)
30mJ/cm2: 9 GPM (34 lpm) (2.0 m3/hr)
40mJ/cm2: 7 GPM (26 lpm) (1.6 m3/hr) |
| Power Consumption |
35W |
| Ship Wt. (lbs) |
26 lbs (11.8 kg) |
| What's included? |
Note: The VH200-F10 replaces the SC200-DWS10 system. |
